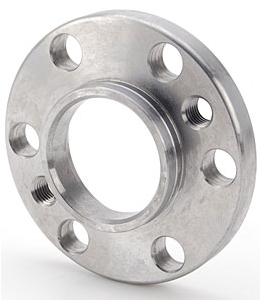

GM 6-Bolt Crankshaft Spacer LS

GM 6-Bolt Crankshaft Spacer LS

Regular price $55.99
Regular price Sale price $55.99
Sale Sold out
Shipping calculated at checkout.


6-Bolt Crankshaft Adapter

  • For use with Gen I style (Turbo 350/400, 700R4, 4L60, 4L60-E and 4L85-E) transmission on Gen III- and Gen IV-engines
  • Use flexplate 19260102 and mounting bolts 19257940
  • Flexplates with patterns other than 11.5'' (4L80 style) torque converter bolt pattern may need to modify flexplate to use.

    The Chevrolet Performance Flexplate to LS Engine Crankshaft Adapter/Spacer is used when installing a non-LS engine automatic transmission, built before 1997, to an LS engine. The LS engine crankshaft flange is 10mm shorter in relation to the end of the bell housing flange, requiring this spacer to be used to bridge the gap between the crankshaft and torque converter when the bellhousing is bolted to the block.

    Note: Longer bolts are required and sold separately (unless stated otherwise)


    PN: 12563532
