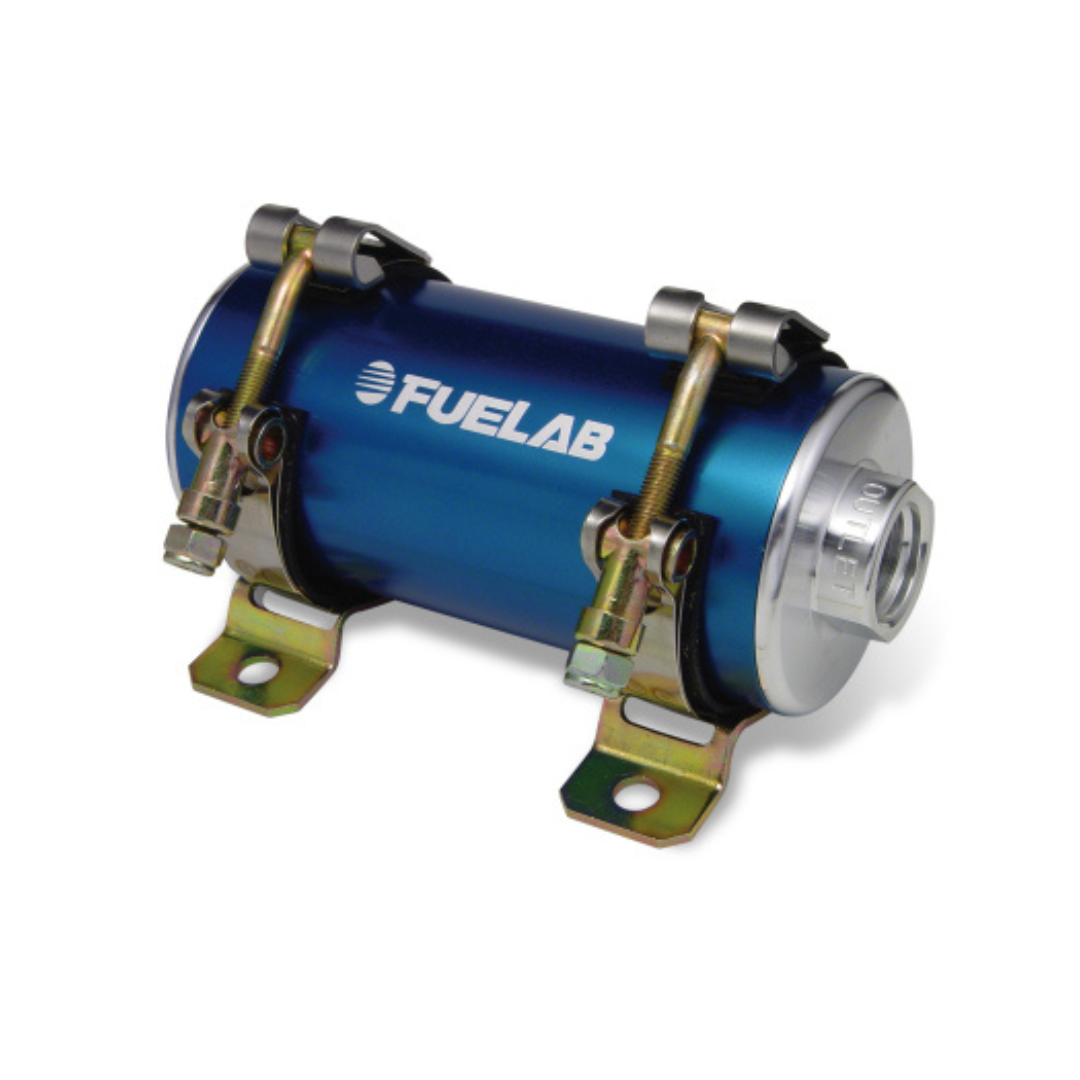

40401 Prodigy Brushless Fuel Pump 75GPH @ 45PSI

75 GPH @ 45 PSI, 100 PSI MAX - Rated up to 750HP - All the great features of our original Prodigy series in a smaller package!

Power Ratings (at the flywheel) :
Up to 750HP N/A on Gas
Up to 625HP N/A on E85
Up to 400HP N/A on Methanol

Pump Features

• Compatible with gasoline, diesel, methanol, and ethanol
• High efficiency sling vane positive displacement pump
• Special housing shape for extremely quite operation and steady pressure
• Carbon 9-vane construction with pressure balanced rotor for high reliability
• Backed by a limited lifetime warranty

Motor Features

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux density Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

• Internal speed controller for variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required!
• Continuous duty–motor speed can be adjusted to meet fuel demand

Construction Features

• Compact, lightweight design, 2 lbs, overall length 6.03", diameter 2.63"
• Billet Aluminum Construction with anodize per MIL-A-8625, Type II
• High quality mounting brackets included
• Long-life, multi-fuel compatible Fluorosilicone static seals
• Accepts standard or port style –10AN fittings

Pulse Width Modulation Compatibility (PWM)

• Compatible with most aftermarket ECU's with PWM output frequency
• Compatible from 100Hz to 5000Hz
• AEM
• ECU Masters
• Fueltech
• Haltech
• Holley
• Link Engine Management
• Megasquirt



Ships Direct From Manufacturer
