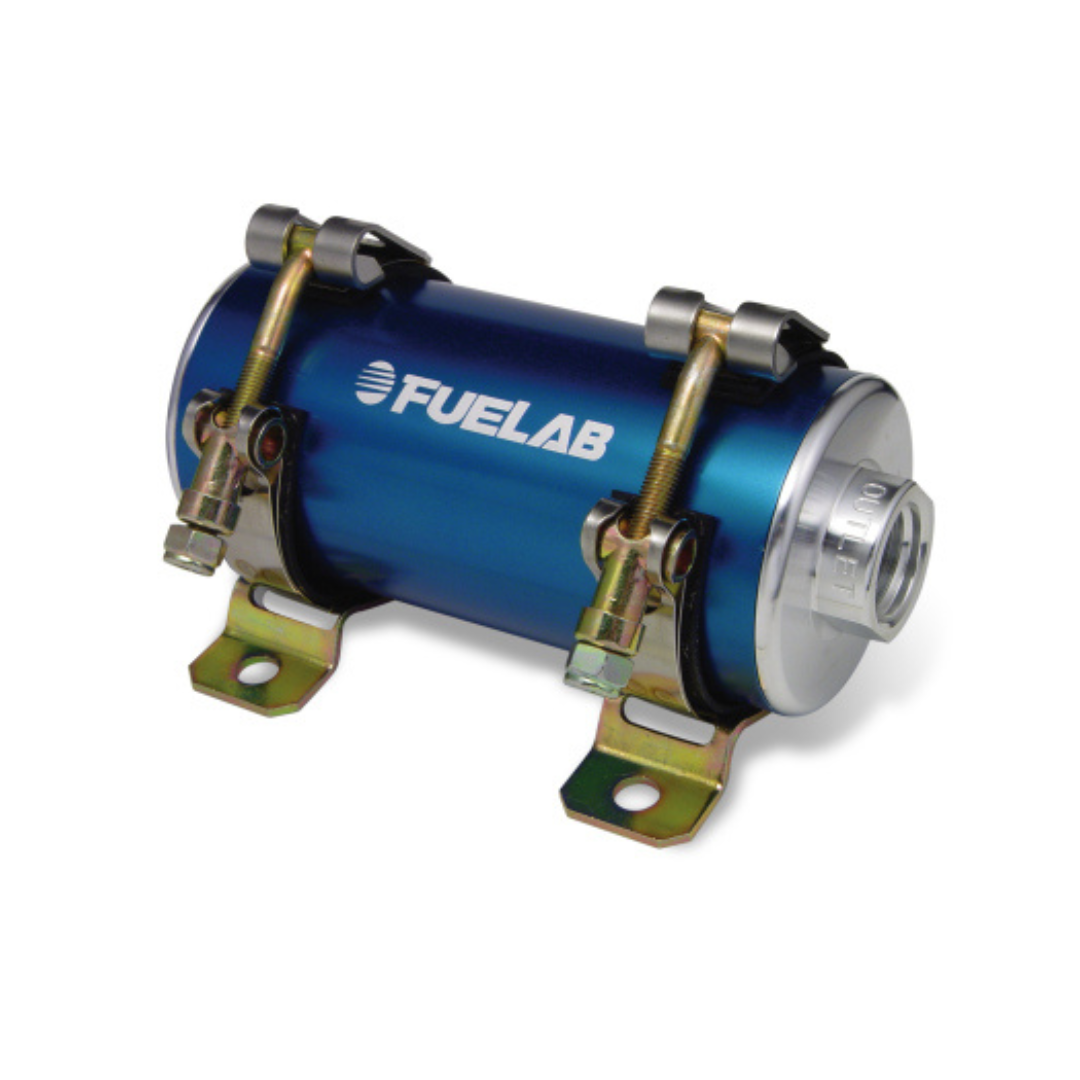

40402 Prodigy Brushless Fuel Pump 160GPH @ 10PSI

40402 Prodigy Brushless Fuel Pump 160GPH @ 10PSI

Regular price $555.53
Regular price Sale price $555.53
Sale Sold out
Shipping calculated at checkout.


140 GPH @ 10 PSI, 35 PSI MAX - RATED UP TO 1600HP - This 160 GPH free flow rating fuel pump is programmed to deliver the maximum flow with the lowest current draw available. Nothing else like it!

Power Ratings (at the flywheel) :
Up to 1600HP N/A on Gas
Up to 1325HP N/A on E85
Up to 750HP N/A on Methanol

Pump Features

  • Compatible with gasoline, diesel, methanol, and ethanol
  • High efficiency sling vane positive displacement pump
  • Special housing shape for extremely quiet operation and steady pressure
  • Carbon 9-vane construction with pressure balanced rotor for high reliability
  • Backed by a limited lifetime warranty

Motor Features

  • Lightweight super-efficient DC brushless motor reduces current draw
  • Low mass rotor for high speed reaction to changes in speed and flow
  • Powerful high flux density Neodymium rare earth magnets
  • No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
  • Wet motor design, no dynamic shaft seals that can wear out

Electronic Features

  • Internal speed controller for variable flow operation
  • 12 to 24 volt vehicle electrical system compatibility
  • Accepts PWM input for speed control
  • No expensive add-on voltage regulators or pump controllers required!
  • Continuous duty–motor speed can be adjusted to meet fuel demand

Construction Features

  • Compact, lightweight design, less than 3 lbs, overall length 6.9", diameter 2.63"
  • Billet Aluminum Construction with anodize per MIL-A-8625, Type II
  • Special housing shape for extremely quite operation and steady pressure
  • Long-life, multi-fuel compatible Fluorosilicone static seals
  • Accepts standard or port style –10AN fittings

Pulse Width Modulation Compatibility (PWM)

  • Compatible with most aftermarket ECU's with PWM output frequency
  • Compatible from 100Hz to 5000Hz
  • AEM
  • ECU Masters
  • Fueltech
  • Haltech
  • Holley
  • Link Engine Management
  • Megasquirt

Ships Direct From Manufacturer
