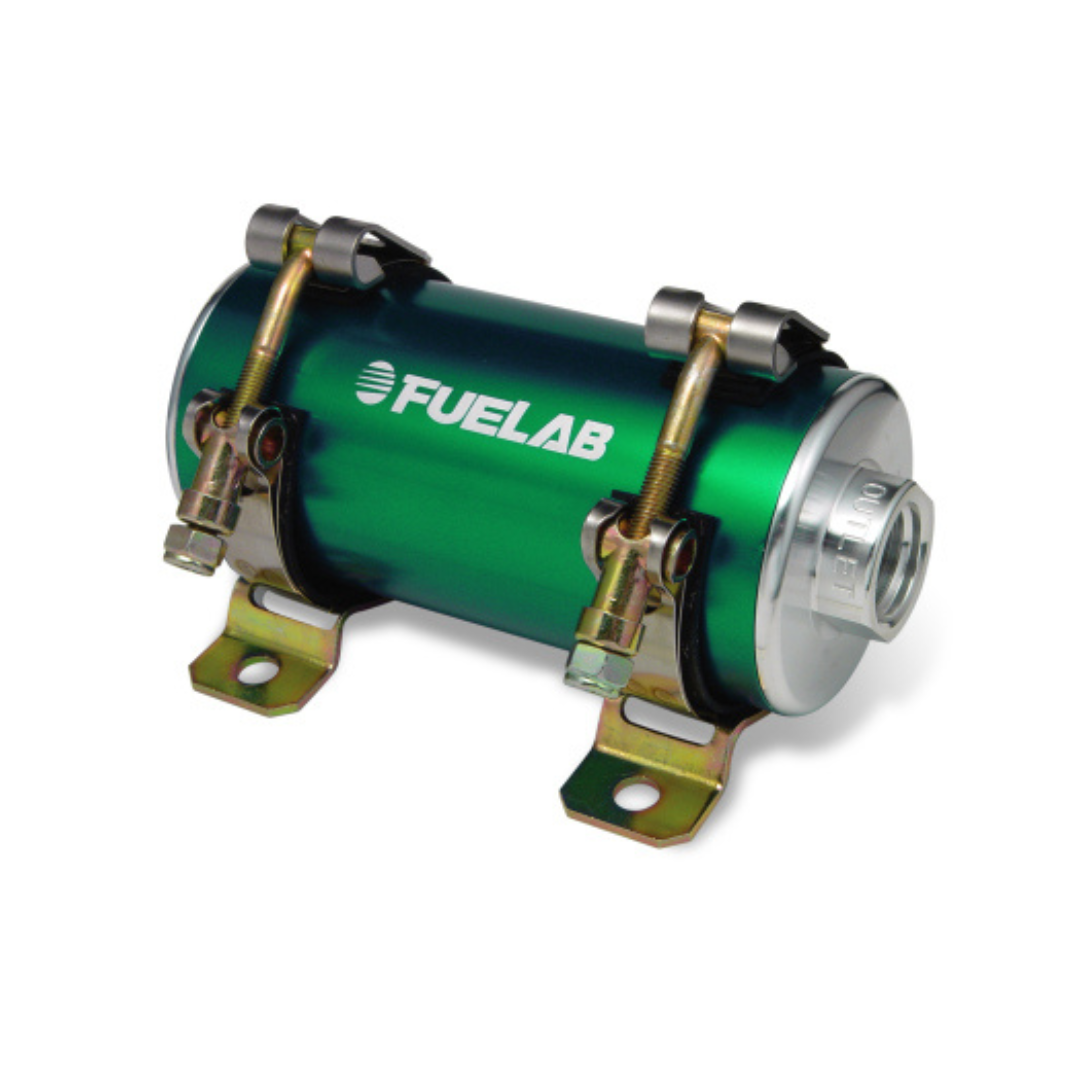

41403 Prodigy Brushless Fuel Pump 200GPH @ 20PSI
41403 Prodigy Brushless Fuel Pump 200GPH @ 20PSI
Regular price
$601.38
Regular price
Sale price
$601.38
Unit price
/
per
Shipping calculated at checkout.
SKU:41403-1
Couldn't load pickup availability
200 GPH @ 20 PSI, 80 PSI MAX - RATED UP TO 2000HP - Get a high amount of flow with this pump made for carbureted and lower pressure applications.
Power Ratings (at the flywheel) :
Up to 2000HP N/A on Gas
Up to 1675HP N/A on E85
Up to 925HP N/A on Methanol
Pump Features
- Compatible with gasoline, diesel, methanol, and ethanol
- High efficiency sling vane positive displacement pump
- Special housing shape for extremely quiet operation and steady pressure
- Carbon 9-vane construction with pressure balanced rotor for high reliability
- Backed by a limited lifetime warranty
Motor Features
- Lightweight super-efficient dc brushless motor reduces current draw
- Low mass rotor for high speed reaction to changes in speed and flow
- Powerful high flux density Neodymium rare earth magnets
- No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
- Wet motor design, no dynamic shaft seals that can wear out
Electronic Features
- Internal speed controller for variable flow operation
- 12 to 24 volt vehicle electrical system compatibility
- Accepts PWM input for speed control
- No expensive add-on voltage regulators or pump controllers required!
- Continuous duty–motor speed can be adjusted to meet fuel demand
Construction Features
- Compact, lightweight design, less than 3 lbs, overall length 6.9", diameter 2.63"
- Billet Aluminum Construction with anodize per MIL-A-8625, Type II
- High quality mounting brackets included
- Long-life, multi-fuel compatible Fluorosilicone static seals
- Accepts standard or port style –10AN fittings
Pulse Width Modulation Compatibility (PWM)
- Compatible with most aftermarket ECU's with PWM output frequency
- Compatible from 100Hz to 5000Hz
- AEM
- ECU Masters
- Fueltech
- Haltech
- Holley
- Link Engine Management
- Megasquirt
Ships Direct From Manufacturer
