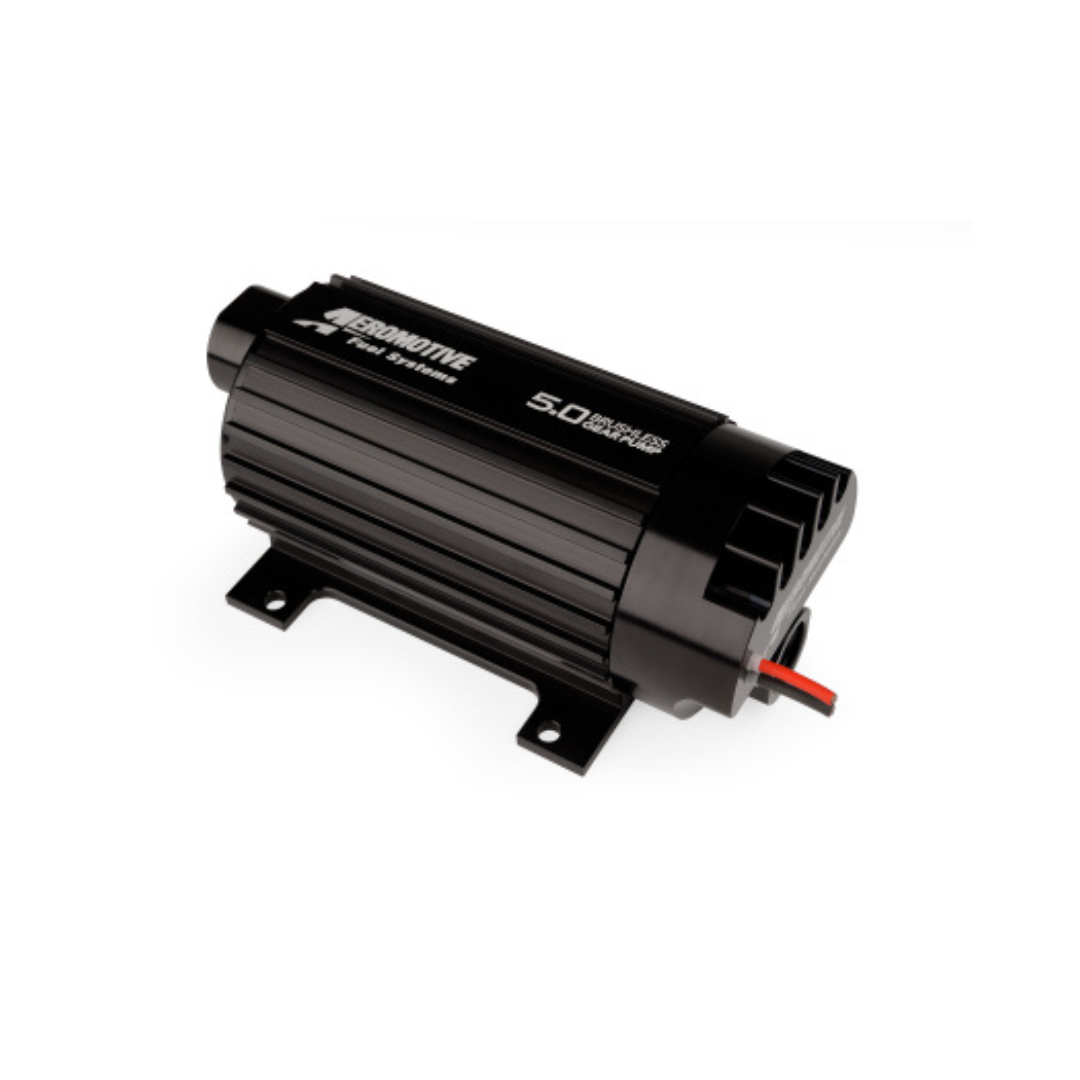

Aeromotive 5.0 GPM TVS Brushless Spur Gear External Fuel Pump

Ground Shaking Performance – Advanced Technology

Supports:

Fuel injected engines: GAS
up to 3400 FWHP – naturally aspirated
up to 2600 FWHP – forced air induction

Carbureted engines: GAS
Up to 3600 FWHP – naturally aspirated
Up to 2700 FWHP – forced air induction

Fuel injected engines: E85
up to 2380 FWHP – naturally aspirated
up to 1820 FWHP – forced air induction

Carbureted engines: E85
Up to 2520 FWHP – naturally aspirated
Up to 1890 FWHP – forced air induction

Fuel injected engines: METHANOL
up to 1,190 FWHP – naturally aspirated
up to 910 FWHP – forced air induction

Carbureted engines: METHANOL
Up to 1,260 FWHP – naturally aspirated
Up to 945 FWHP – forced air induction

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

• Lighter than the traditional external mount pumps.

• Reduced current draw at higher, EFI pressures.

• Extended service life in methanol and ethanol.

• New integral spur-gear pumping mechanism.

• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

• ORB-12 inlet and ORB-10 outlet ports.

• Requires straight 12-VDC to 16-VDC power supply.

• Not compatible with pulse modulated systems or fuel pump speed controllers.
