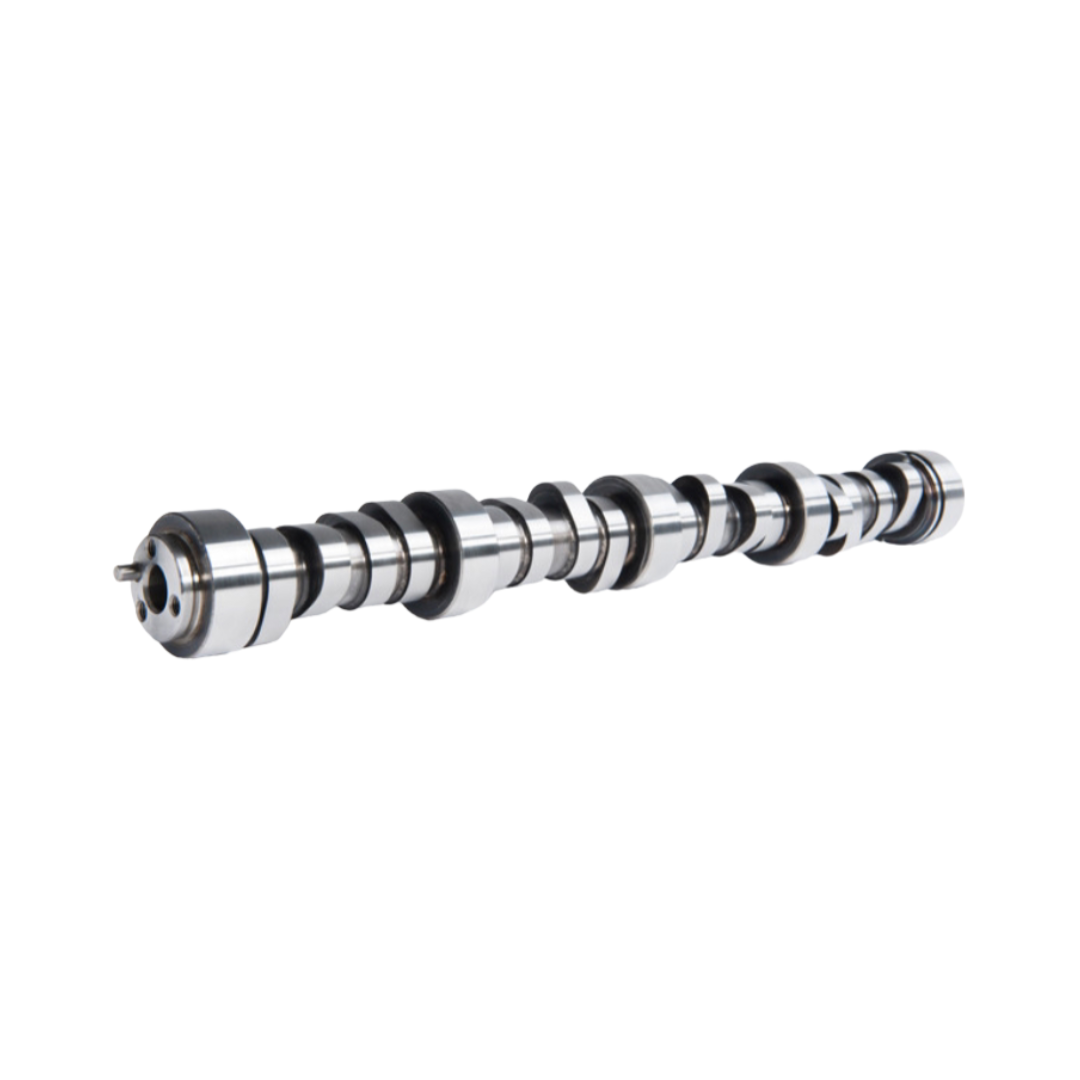

Cam Motion Titan 2 LS1 Camshaft

Cam Motion Titan 2 LS1 Camshaft

Regular price $399.00
Regular price Sale price $399.00
Sale Sold out
Shipping calculated at checkout.

SKU:03-01-0011

Hydraulic Roller Camshaft
Mild Performance


Duration at .050": 221/226
112 Lobe Center Angle with a 110 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .595"/.586"


Recommended Displacement: 5.3-6.2 Liter Engines
Cylinder Heads: Cathedral Port
Recommended Compression Ratio: 9.4-11.00:1
Recommended Headers: Stock Manifolds - 1 3/4"
Recommended Stall Converter: 2500-3500
Recommended Rear Axle Ratio: Stock - 3.73


*Designed for factory style, or high flow aftermarket long runner intake manifolds.

The TITAN II LS1 camshaft is designed for mild performance in cars using 5.3-6.2 liter LS engines equipped with cathedral port LS1 style heads. The TITAN II LS1 will have a slight performance idle and improved power throughout the RPM range with emphasis on mid-range to upper mid-range power and torque. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust and increased stall speed torque converter. Vehicles using this cam will also benefit from high flow intake systems and in some applications, increased rear axle ratios.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. 5150 Core

Recommended Accessories:
•Cam Motion .600: Lift Beehive Valve Springs or our .660" lift Dual Valve Spring Kit
•Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods



Ships Direct From Manufacturer
