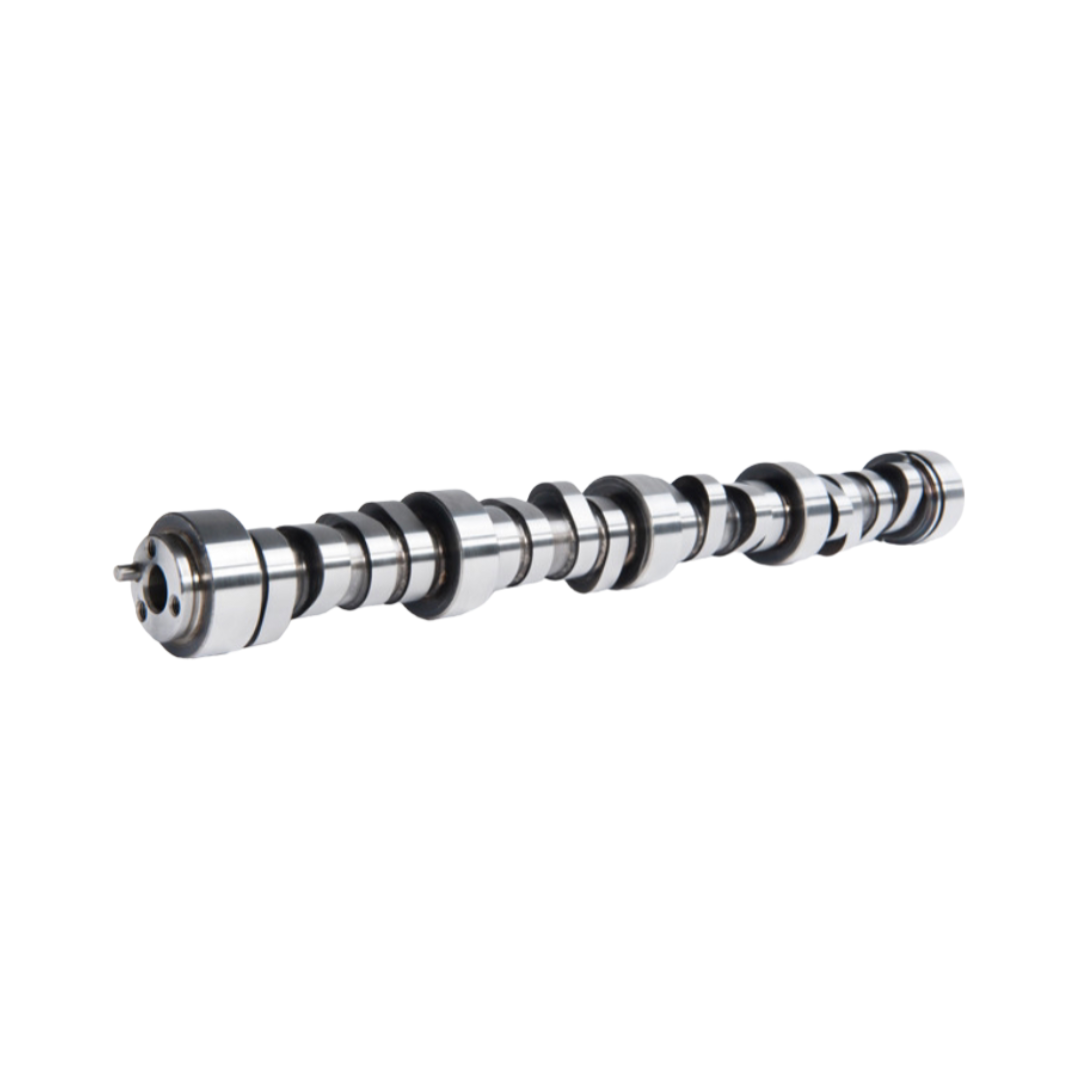

Cam Motion Titan 2 LS3 Camshaft
Cam Motion Titan 2 LS3 Camshaft
Hydraulic Roller Camshaft
Mild Performance
Duration at .050": 222/230
113 Lobe Center Angle with a 110 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .595"/.587"
Recommended Displacement: 6.0-6.2 Liter Engines
Cylinder Heads: Rectangle Port
Recommended Compression Ratio: 9.5-11.0:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 2400-3600
Recommended Rear Axle Ratio: 3.42-4.11
*Designed for factory style, or high flow aftermarket long runner intake manifolds.
The TITAN II LS3 camshaft is designed for mild performance in cars using 6.0-6.2 liter LS engines equipped with rectangular port, LS3/L99/L92 style heads. The TITAN II LS3 will have a slight performance idle and improved power throughout the RPM range with emphasis on mid-range to upper mid-range power and torque. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust and increased stall speed torque converter. Vehicles using this cam will also benefit from high flow intake systems and in some applications, increased rear axle ratios.
The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. 5150 Core
Recommended Accessories: (Not Included)
•Cam Motion .600: Lift Beehive Valve Springs or our .660" lift Dual Valve Spring Kit
•Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods
Ships Direct From Manufacturer
