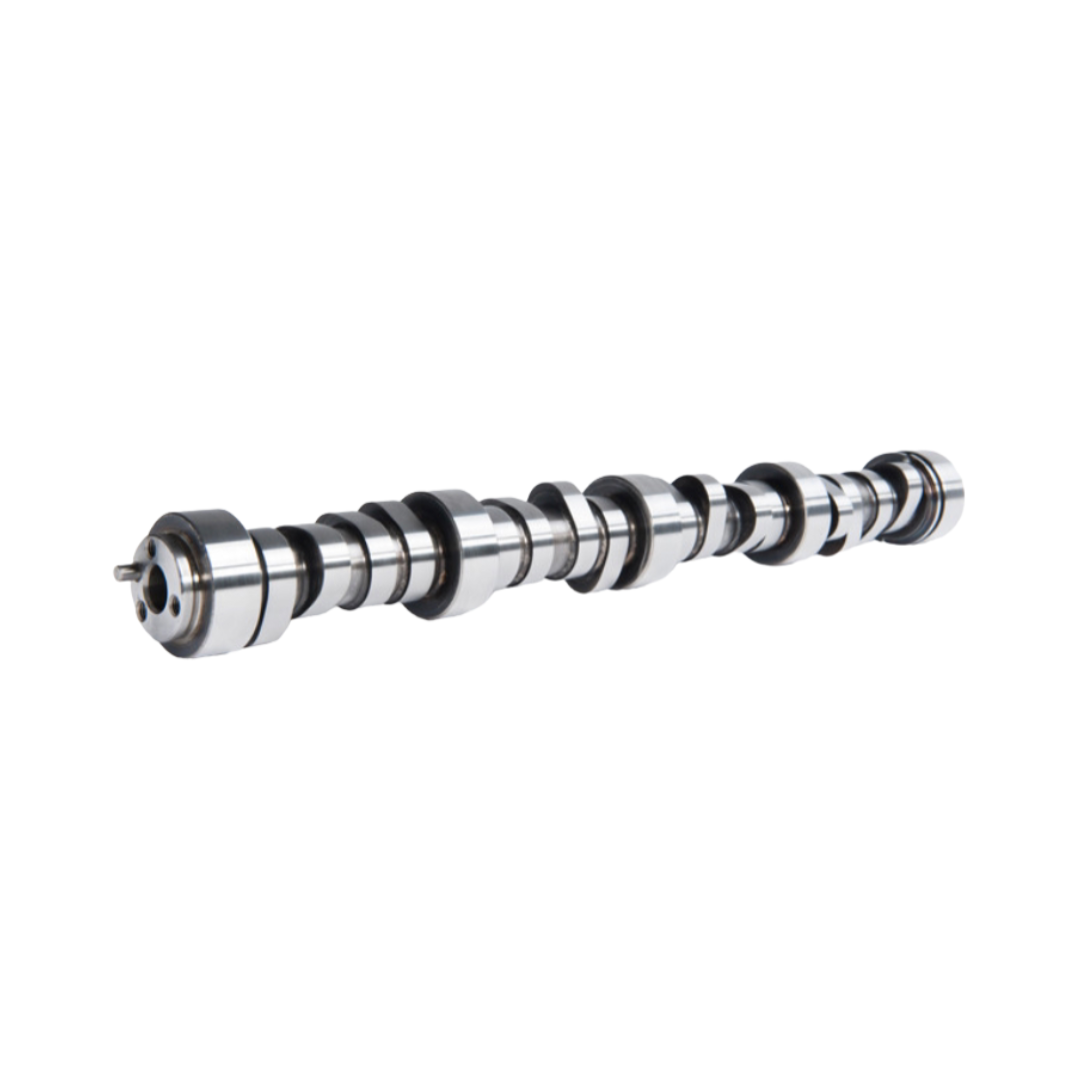

Cam Motion Titan 3 LS1 Camshaft

Cam Motion Titan 3 LS1 Camshaft

Regular price $399.00
Regular price Sale price $399.00
Sale Sold out
Shipping calculated at checkout.

SKU:03-01-0012

Hydraulic Roller Camshaft
Aggressive  Performance


Duration at .050": 224/228
113 Lobe Center Angle with a 109 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .603"/.595"


Recommended Displacement: 5.3-6.2 Liter Engines
Cylinder Heads: Cathedral Port
Recommended Compression Ratio: 9.4-11.0:1
Recommended Headers: 1 3/4"
Recommended Stall Converter: 2500-3500
Recommended Rear Axle Ratio: Stock-4.11


*Designed for factory style, or high flow aftermarket long runner intake manifolds.

The TITAN III LS1 camshaft is designed for aggresive performance in cars using 5.3-6.2 liter LS engines equipped with cathedral port, LS1 style heads. The TITAN III LS1 will have a light performance idle and strong midrange to upper midrange power. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust and increased stall speed torque converter, high flow intake systems and increased rear axle ratios.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. 5150 Core

Recommended Accessories: (Not Included)
•Cam Motion .600: Lift Beehive Valve Springs or our .660" lift Dual Valve Spring Kit
•Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods

Ships Direct From Manufacturer
