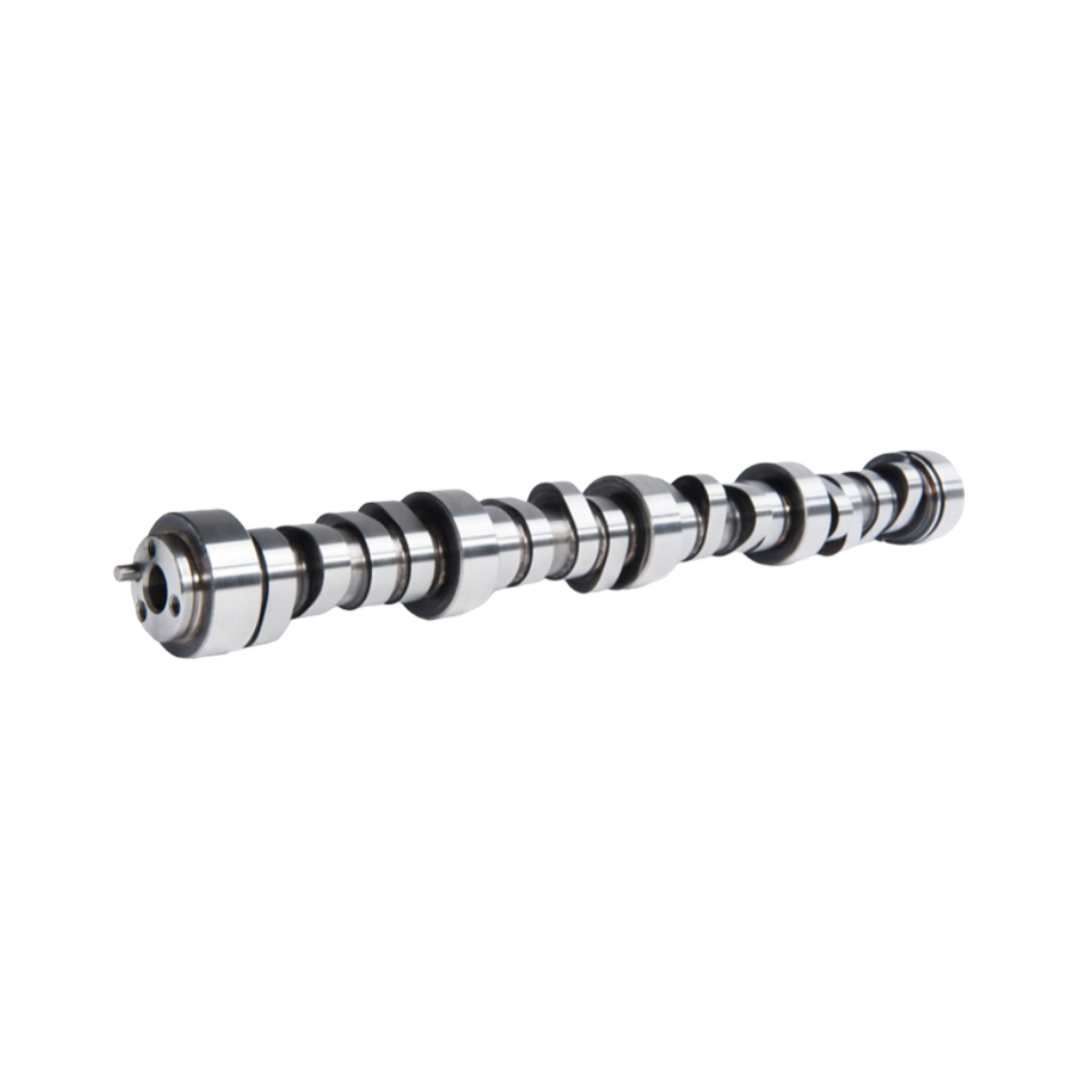

Cam Motion Titan 5 LS1 Camshaft

Cam Motion Titan 5 LS1 Camshaft

Regular price $399.00
Regular price Sale price $399.00
Sale Sold out
Shipping calculated at checkout.

SKU:03-01-0014

Hydraulic Roller Camshaft
Aggressive Performance


Duration at .050": 232/238
113 Lobe Center Angle with a 109 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .621"/.604"


Recommended Displacement: 5.7-6.2 Liter Engines
Cylinder Heads: Cathedral Port
Recommended Compression Ratio: 10.0-11.5:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 3000-4500
Recommended Rear Axle Ratio: 3.73-4.56


*Designed for factory style, or high flow aftermarket long runner intake manifolds.

The TITAN V LS1 camshaft is designed for aggressive performance or strip in cars using 5.3-6.2 liter LS engines equipped with cathedral port, LS1 style heads. The TITAN V LS1 will have a heavy lope to the idle and strong upper midrange to high RPM power. This camshaft is designed to be used for vehicles equipped with headers, high flow or racing exhaust and high stall speed torque converter, high flow intake systems and optimal rear axle ratios.

If you are looking for a very aggressive cam for strip or mild race, this camshaft is a good choice.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. 5150 Core

Recommended Accessories: (Not Included)
•Cam Motion .660" lift Dual Valve Spring Kit
•Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods

Ships Direct From Manufacturer
