L99 DOD/AFM/VVT Delete Kit W/ BTR LS3 Cam Kit
L99 DOD/AFM/VVT Delete Kit W/ BTR LS3 Cam Kit
Regular price
$1,538.09
Regular price
Sale price
$1,538.09
Unit price
/
per
Shipping calculated at checkout.
SKU:
Couldn't load pickup availability
Brian Tooley Racings DOD/AFM Kit paired up with their LS3 Cam Kit is a guaranteed recipe for success. Including nearly every piece to get this job done except intake manifold gaskets. This kit is designed with ease in mind using mostly Genuine GM parts. Tuning is required with this kit.

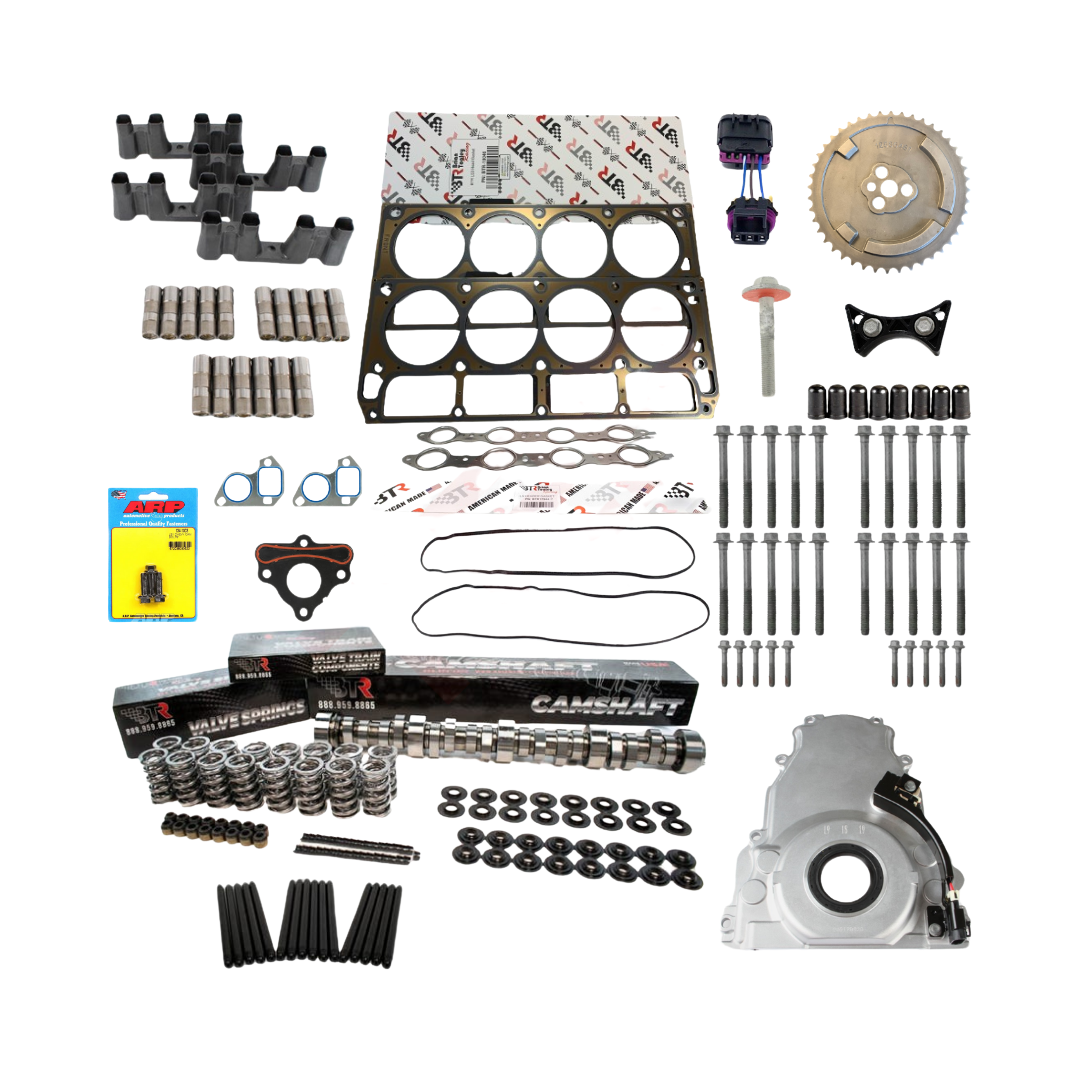

DOD/VVT Delete Kit Includes:
- GM Non-DOD Valley Cover with PCV Provision
- Delphi LS7 Lifter Set (No Warranty! Johnson & Morel Available - Call for quote)
- BTR LS Lifter Trays x4
- BTR MLS LS3 Head Gasket Set
- BTR 2004+ LS Head Bolt Set
- GM Crank Bolt 12557840
- BTR MLS Exhaust Manifold Gasket Set
- BTR Valve Cover Gasket Set
- BTR Timing Cover Gasket
- BTR Timing Chain Dampener
- ARP LS Cam Bolts 134-1003
- BTR Water Pump Gaskets x2
- BTR 58X 4 Pole 3 Bolt Timing Gear
- BTR Camshaft Retainer Thrust Plate
- GM Timing Chain Cover w/ Cam Sensor 12633906
- VVT TO NON-VVT Adapter Harness
BTR Cam Kit Includes:
- Your Choice Of Camshaft
- BTR .660" Dual Valve Spring Kit w/ Steel Retainers
- BTR 7.400" 5/16" .080" wall Chromoly Pushrods (call/email if other size needed)
- Cam Kit Ships Direct From BTR
BTR Cam Specs:
- BTR V2 Stage 1 LS3 N/A Camshaft: - 217/23X .619"/.607" 114 LSA - Works w/ Stock Converter
- BTR V2 Stage 2 LS3 N/A Camshaft: 221/24X .619"/.617" 113 LSA - Works w/ Stock Converter, 2600+ recommended.
- BTR V2 Stage 4 LS3 N/A Camshaft 233/25X .636"/.636" 113+5 3600+ Stall Required
- BTR V2 Stage 5 LS3 N/A Camshaft: 235/25X .646"/.646" 111 LSA - 3600+ Stall Required
Notes:
- Stage 4 you CAN NOT mill your cylinder heads without the possibility of having to fly cut your pistons.
- Stage 5 fly cutting pistons is required for proper clearance on factory pistons. Fly Cutting is not required in L99 engines with exhaust notches.
- Timing chain and oil pump not included.
