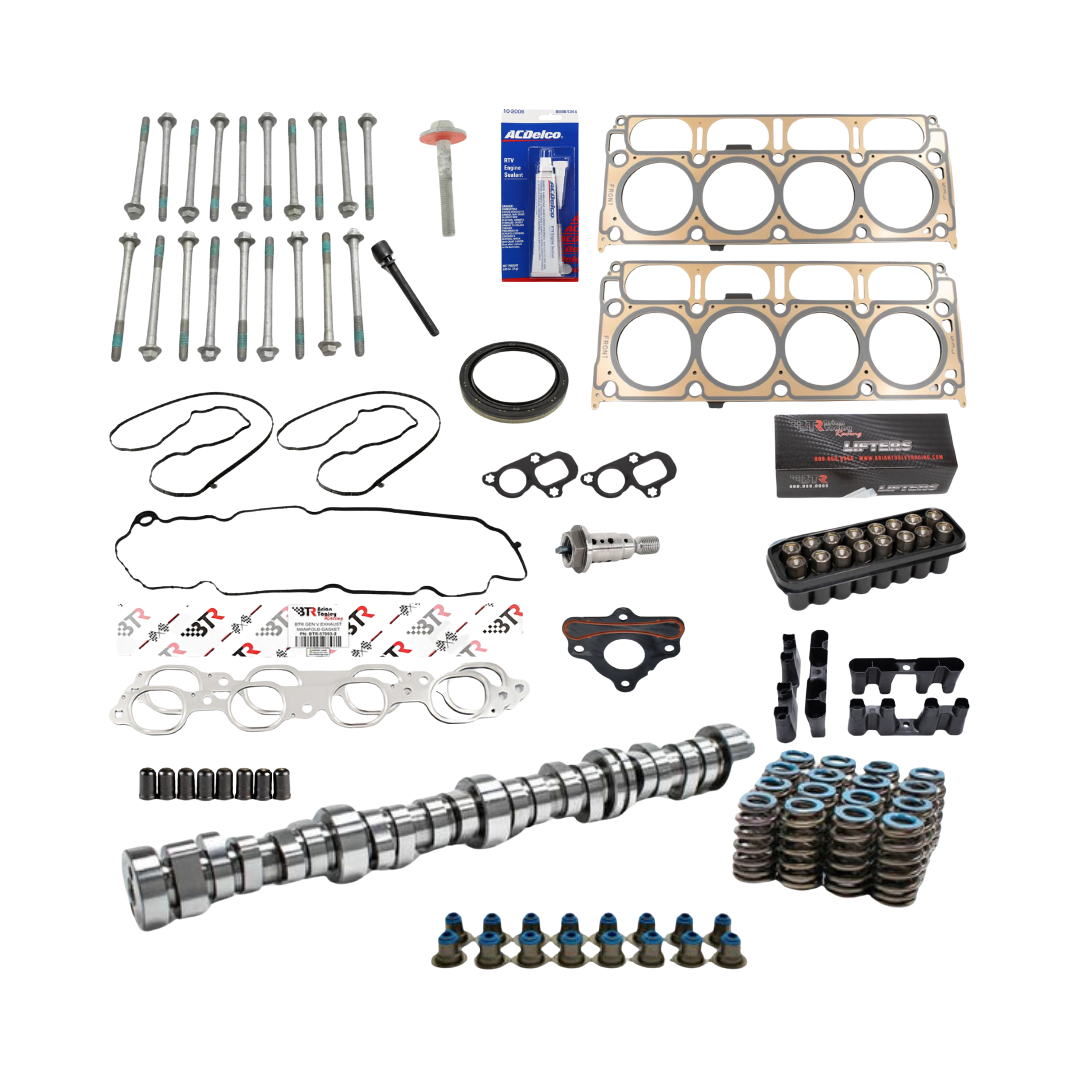

BTR Gen V 14-18 DOD Delete Kit w/ BTR Low Lift Truck Cam Kit

BTR Gen V 14-18 DOD Delete Kit w/ BTR Low Lift Truck Cam Kit

Regular price $1,076.72
Regular price Sale price $1,076.72
Sale Sold out
Shipping calculated at checkout.

SKU:BTRLTTRK-5-1

Engine?
Camshaft?

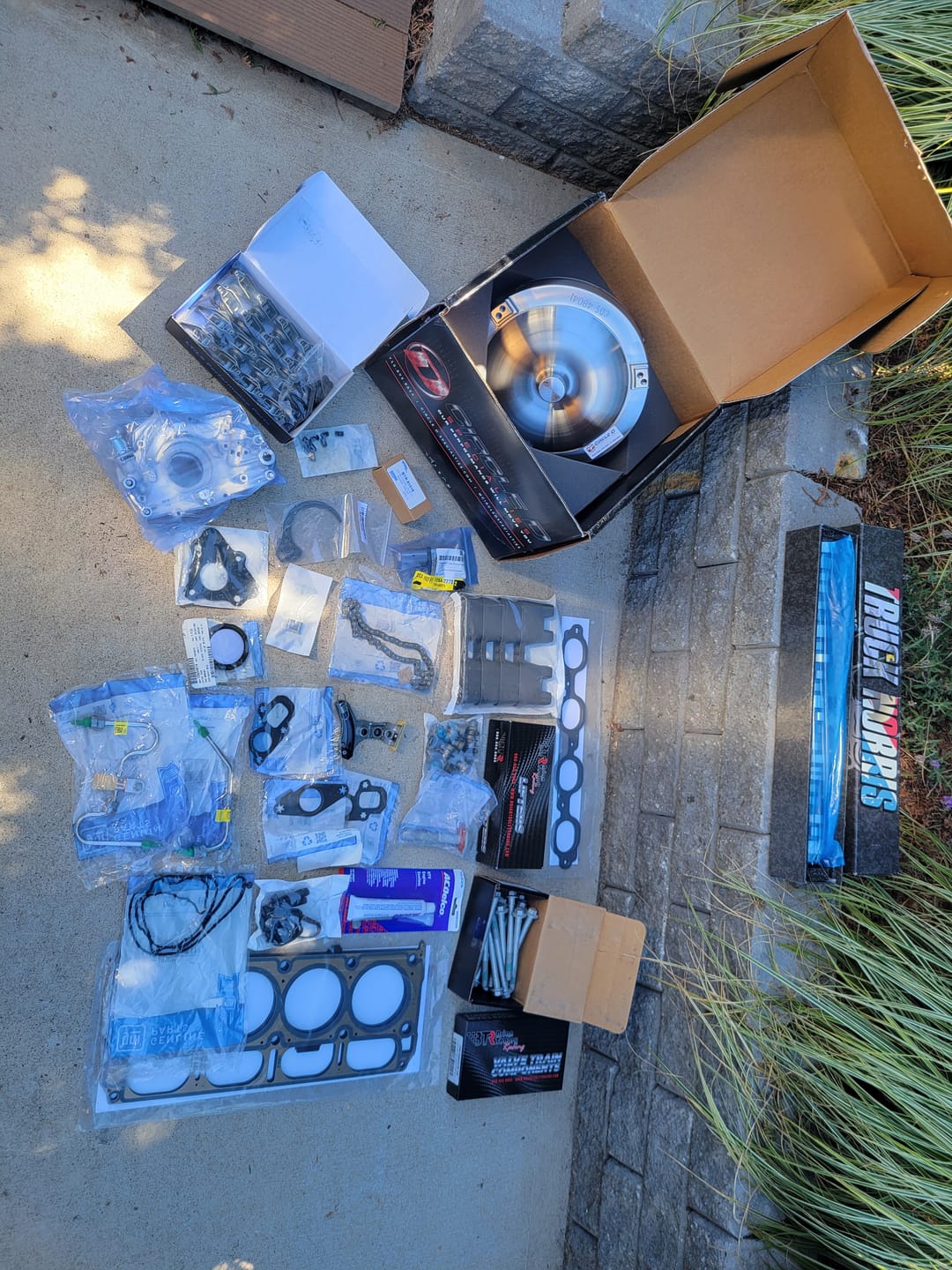

DOD Kit Includes:

  • BTR MLS Head Gasket Set
  • BTR Lifter Trays - Set of 4
  • Delphi Gen V Non-DOD Lifter Set of 16 (NO WARRANTY)
  • BTR Head Bolt Set 11546959 (19pcs) & 11611976 (1pc)
  • GM Crank Bolt 11547372
  • BTR Exhaust Manifold Gaskets BTR-57093
  • BTR Valley Cover Gasket BTR-23104
  • GM Valve Cover Gasket Set 12619787
  • GM Crank Damper Seal 12634614
  • GM Water Pump Gasket Set 2512066
  • BTR Camshaft Retainer Plate BTR89016
  • CBI DOD Block Off Plugs
  • ACDelco RTV Sealant
  • BTR Cam Phaser Bolt BTR-81018

Stage 1-3 Cam Kit Includes:

  • Your choice of BTR Gen V Stage 1, 2 or 3 Truck Camshaft
  • BTR .550" Beehive Spring Set
  • BTR Valve Hat Seals
  • BTR 4* Phaser Limiter

Stage 4 Cam Kit Includes:

  • Your choice of BTR Gen V Truck Camshaft
  • BTR Conical .650" Spring & Seal Set
  • BTR 4* Phaser Limiter
  • BTR 11/32 7.850 Chromoly Pushrod Set

Cam Specs:

Stage 1: 203/210 .540"/.540" 112 LSA 14% Fuel Lobe - Works with stock converter

  • 34.8 HP Increase and 24.4 FT LBS on BTR's engine dyno using the L83.

Stage 2: 210/223 .540"/.540" 111 LSA 14% Fuel Lobe - Works with stock converter

  • 44.2 HP Increase and 24.4 FT LBS Increase on BTR's engine dyno using the L83.

Stage 3: 215/233 .540"/.540" 110 LSA 14% Fuel Lobe - 2600 stall recommended for L83 5.3

  • 52.1 HP Increase and 22.5 FT LBS Increase on BTR's engine dyno using the L83.

Stage 4: 217/23X .644"/.644" 114 LSA 32% Fuel Lobe - 3400+ Stall Required

  • 67.4 HP Increase and 15.7 FT LBS Increase on BTR's engine dyno using the L83.

Notes:

  • Tuning is required after camshaft installation.
  • Delphi Gen V lifters do not have any type of warranty.
  • We recommend replacing the HPFP Fuel Lines and Fuel Pump Gasket.
  • Phaser tool NOT included.
  • This kit WILL NOT work for 14+ 2500HD with the 6.0 engine. Please see the 07-13 kits for this vehicle.

If you have any questions or want to substitute any parts, please give us a call or send an email.

Listing updated 4/03/24
