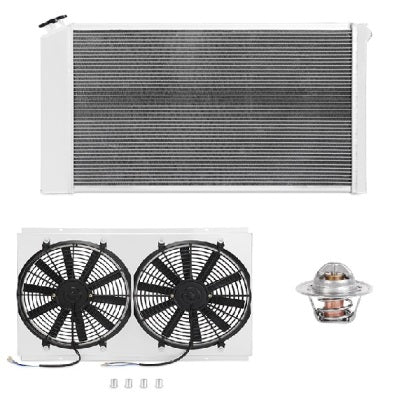

Mishimoto 73-86 GM C/K Truck 250/292/305 Cooling Package

Mishimoto 73-86 GM C/K Truck 250/292/305 Cooling Package

$667.95
$667.95
Sale Sold out
Shipping calculated at checkout.

MMCPKG-CHE-68

Ships Direct From Manufacturer

Part Number:
misMMCPKG-CHE-68
Description:
Chevrolet/GMC C/K Truck (250/292/305) Cooling Package
Color:
Silver
Finish:
Raw
Installation Difficulty:
3/5
Material:
Aluminum
Feature Bullet 1:
Direct fit for 1973-1986 Chevy/GMC C/K Truck with a 250, 292, or 305
Feature Bullet 3:
3-Row brazed aluminum radiator core
Feature Bullet 4:
Billet aluminum radiator fill neck
Alternate Part Number:
MMCPKG-CHE68
Feature Bullet 2:
All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
Feature Bullet 5:
Radiator includes internal transmission cooler to ensure optimal fluid temperatures
Installation Difficulty:
3/5/2018
Title:
Mishimoto Chevrolet/GMC C/K Truck (250/292/305) Cooling Package MMCPKG-CHE-68
Title:
Chevrolet/GMC C/K Truck (250/292/305) Cooling Package, 1973?1986
Prop 65 - Short Label:
Prop 65 (C, R or CR):
CR
Prop 65 Yes/No:
Yes
TechSpec Overall Height (in):
18.9
TechSpec Overall Length (in):
33.7'
TechSpec Overall Width (ins):
4.6
TechSpec Core Length (in):
28.2
TechSpec Core Height (in):
16.9
TechSpec Fluid Capacity (gal):
N/A
TechSpec Rows:
3
TechSpec Inlet (in):
1.5
TechSpec Outlet (in):
1.6
TechSpec Core Thickness (in):
2.2
TechSpec Drain Plug Thread Size:
N/A
TechSpec DPI:
N/A
TechSpec Material:
N/A
TechSpec Applications:
1968-1977 Chevrolet El Camino (250ci 4.1L)----1973-1986 Chevrolet/GMC C/K (250ci 4.1L/292ci 4.8L/305ci 5.0L)
TechSpec Engine Codes:
N/A
TechSpec Chassis Codes:
N/A
TechSpec Note:
MISHIMOTO ACTIVATION TEMPERATURE--180 F / 82 C----STOCK ACTIVATION TEMPERATURE--195 F / 90.5 C----FAN SPECIFICATIONS------MOUNTING HARDWARE--(4) Mounting Spacers--(4) 1-inch Self-tapping Screws----OVERALL SIZE--Length - 28.74-inch--Height - 19.7-inch--Width - .91-inch----CFM--Each fan puts out 1,300 CFM----NOTE--Radiator is designed for vehicles with or without air conditioning.--Electric fans already come attached to the shroud
TechSpec Includes:
Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug-- Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--Mounting Hardware-- Mishimoto Thermsotat--Mishimoto Lifetime Warranty
SellingPoint1:
Direct fit for 1973-1986 Chevy/GMC C/K Truck with a 250, 292, or 305
SellingPoint2:
All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
SellingPoint3:
3-Row brazed aluminum radiator core
SellingPoint4:
Billet aluminum radiator fill neck
SellingPoint5:
Radiator includes internal transmission cooler to ensure optimal fluid temperatures
SellingPoint6:
Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
SellingPoint7:
Fan Shroud replaces failure-prone stock mechanical fan
SellingPoint8:
Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
SellingPoint9:
Thermostat is digitally calibrated for precise, consistent operation
SellingPoint10:
Mishimoto Lifetime Warranty
SellingPoint11:
N/A
SellingPoint12:
N/A
SellingPoint13:
N/A
SellingPoint14:
N/A
SellingPoint15:
N/A
SellingPoint08:
Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
SellingPoint09:
Thermostat is digitally calibrated for precise, consistent operation
SellingPoint01:
Direct fit for 1973-1986 Chevy/GMC C/K Truck with a 250, 292, or 305
SellingPoint02:
All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
SellingPoint03:
3-Row brazed aluminum radiator core
SellingPoint04:
Billet aluminum radiator fill neck
SellingPoint05:
Radiator includes internal transmission cooler to ensure optimal fluid temperatures
SellingPoint06:
Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
SellingPoint07:
Fan Shroud replaces failure-prone stock mechanical fan
