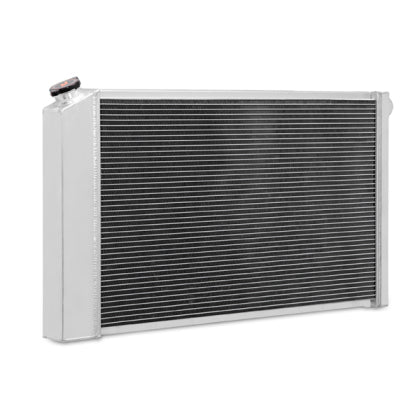

Mishimoto 78-86 GM C/K Truck X-Line Performance Aluminum Radiator
Mishimoto 78-86 GM C/K Truck X-Line Performance Aluminum Radiator
Regular price
$385.95
Regular price
Sale price
$385.95
Unit price
/
per
Shipping calculated at checkout.
SKU:MMRAD-CK-78X
Couldn't load pickup availability
Ships Direct From Manufacturer
Part Number:
misMMRAD-CK-78X
Description:
Chevrolet/GM C/K Truck 3-Row Performance Aluminum Radiator with 19" Tall Core
Color:
Silver
Finish:
Polished
Material:
Aluminum
Installation Difficulty:
3/5
Alternate Part Number:
MMRAD-CK-78X
Title:
Mishimoto Chevrolet/GM C/K Truck 3-Row Performance Aluminum Radiator with 19" Tall Core MMRAD-CK-78X
Installation Difficulty:
3/5/2018
Title:
Chevrolet/GM C/K Truck 3-Row Performance Aluminum Radiator with 19in Tall Core, 1978;1986
Prop 65 - Short Label:
Prop 65 (C, R or CR):
CR
Prop 65 Yes/No:
Yes
SellingPoint7:
Mishimoto Lifetime Warranty
SellingPoint8:
N/A
SellingPoint9:
N/A
SellingPoint10:
N/A
SellingPoint11:
N/A
SellingPoint12:
N/A
SellingPoint13:
N/A
SellingPoint14:
N/A
SellingPoint15:
N/A
TechSpec Overall Height (in):
33.9
TechSpec Overall Length (in):
20.7
TechSpec Overall Width (ins):
4.5
TechSpec Core Length (in):
28.3
TechSpec Core Height (in):
18.9
TechSpec Fluid Capacity (gal):
4.87
TechSpec Rows:
3
TechSpec Inlet (in):
1.5
TechSpec Outlet (in):
1.6
TechSpec Core Thickness (in):
2.5
TechSpec Drain Plug Thread Size:
1/4-18 NPT
TechSpec DPI:
716
TechSpec Material:
Aluminum
TechSpec Applications:
1978-1986 GM C/K Series Pickup 292ci (4.8L) L6, 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8--1987-1991 Chevy Blazer 305ci (5.0L) V8, 350ci (5.7L) V8--1981-1991 GMC Jimmy 305ci (5.0L) V8, 350ci (5.7L) V8--1987-1991 R Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8--1987-1991 V Series 305ci (5.0L) V8, 350ci (5.7L) V8, 454ci (7.4L) V8
TechSpec Engine Codes:
292ci (4.8L) L6--305ci (5.0L) V8--350ci (5.7L) V8--454ci (7.4L) V8
TechSpec Chassis Codes:
N/A
TechSpec Note:
Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP----Fits with factory air conditioning.----This radiator is not designed to work with the factory heavy-duty cooling system.
TechSpec Includes:
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint1:
All-aluminum construction with durable, TIG-welded end tanks
SellingPoint2:
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint3:
3-row brazed aluminum core
SellingPoint4:
Increased coolant capacity and superior heat dissipation
SellingPoint5:
Billet aluminum fill neck
SellingPoint6:
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
SellingPoint01:
All-aluminum construction with durable, TIG-welded end tanks
SellingPoint02:
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint03:
3-row brazed aluminum core
SellingPoint04:
Increased coolant capacity and superior heat dissipation
SellingPoint05:
Billet aluminum fill neck
SellingPoint06:
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
SellingPoint07:
Mishimoto Lifetime Warranty
SellingPoint08:
N/A
SellingPoint09:
N/A
