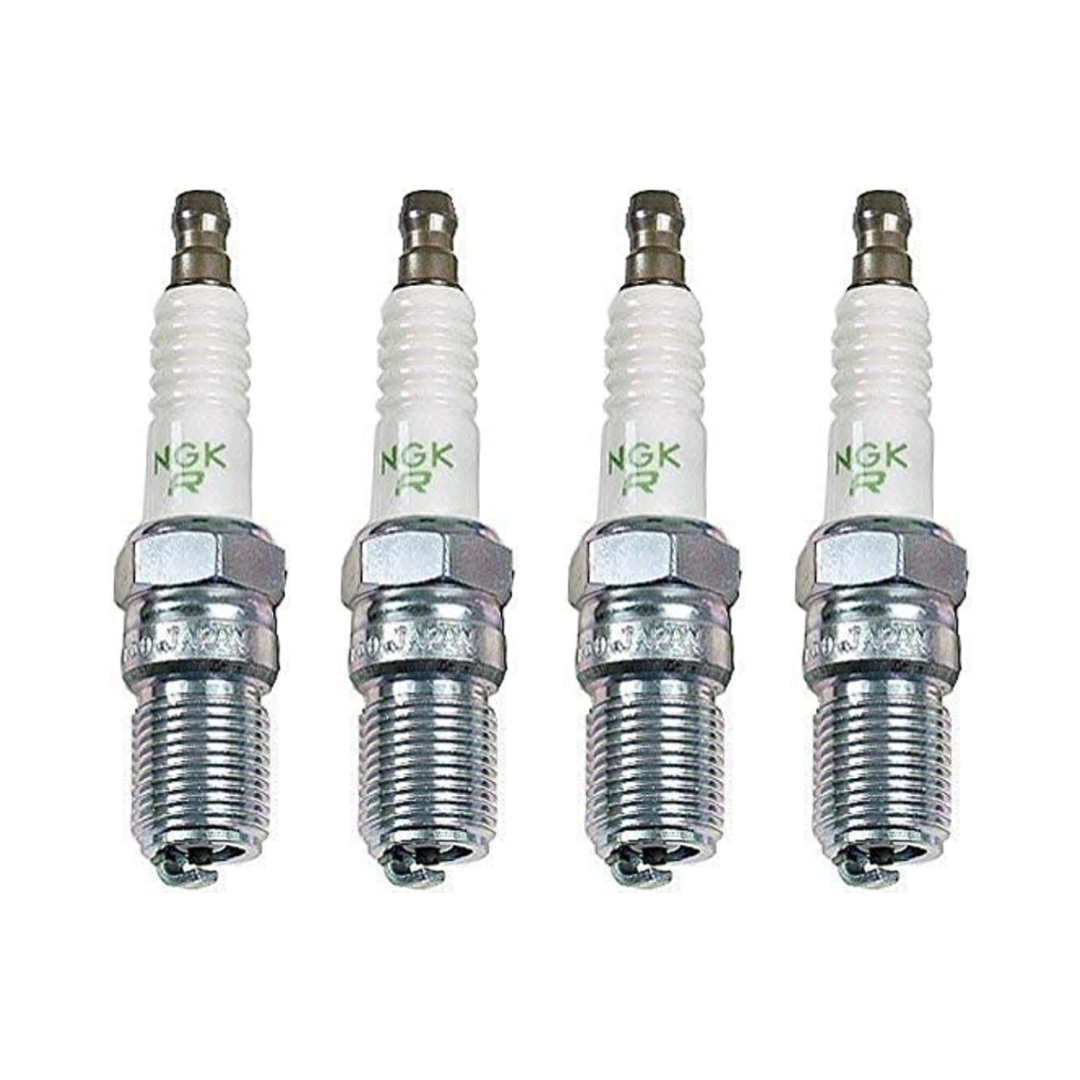

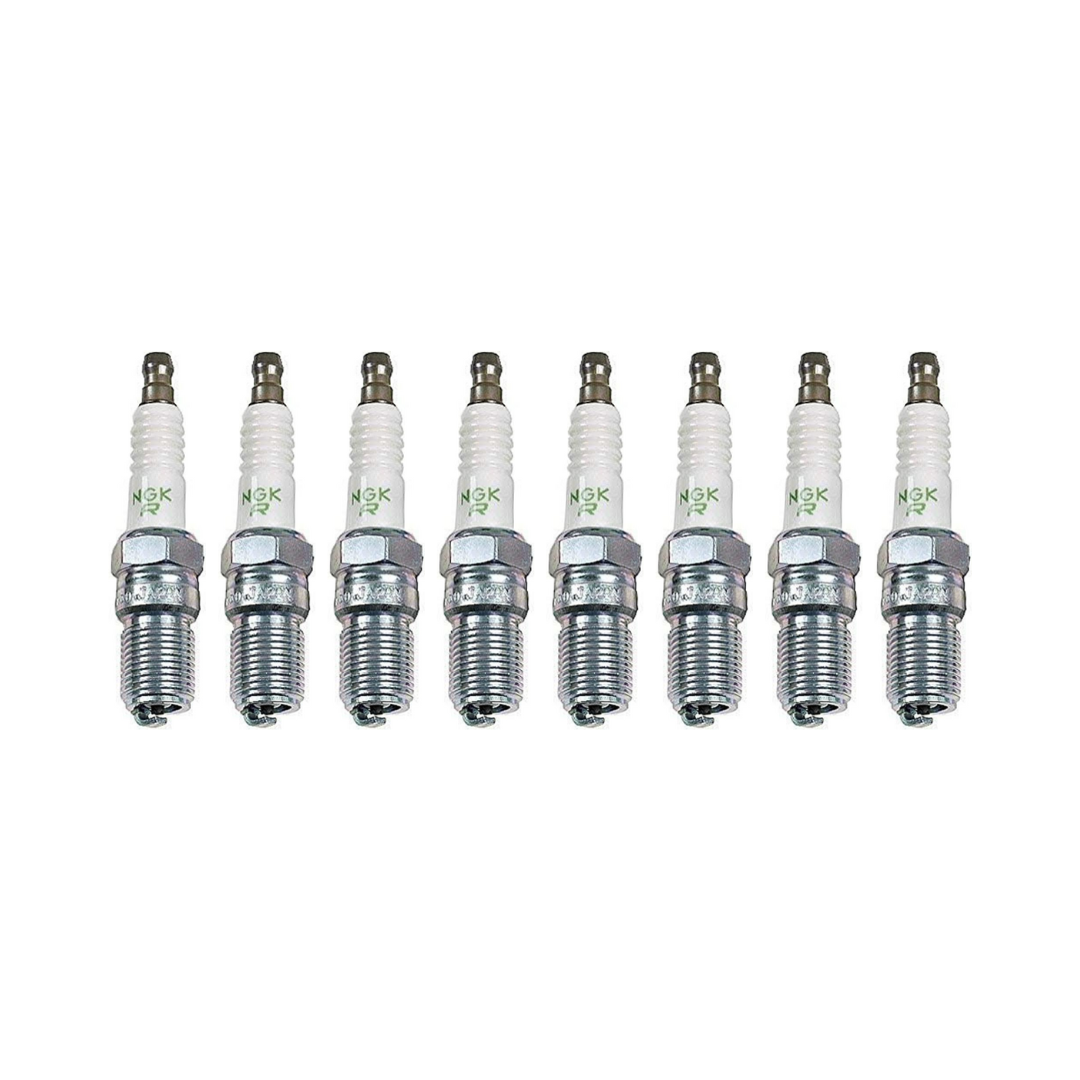

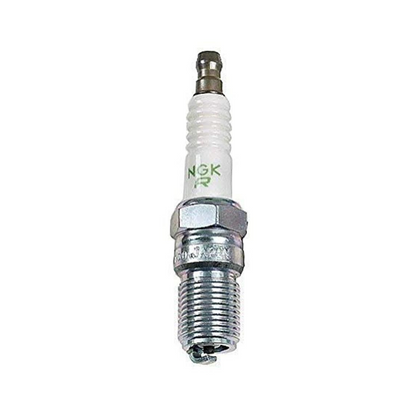

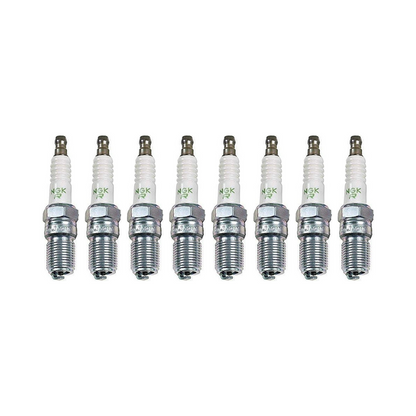

NGK BR7EF Spark Plug - 3346

NGK BR7EF Spark Plug - 3346

Regular price $2.99
Regular price Sale price $2.99
Sale Sold out
Shipping calculated at checkout.

SKU:

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.
  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Shell
Thread Diameter - 14mm
Thread Pitch - 1.25mm
Seat Type - Tapered
Reach - 18mm (.709")
Hex Size - 5/8" (16mm)
Terminal Type - Solid
Overall Height - ISO
Gap - .028" (0.7mm)


Center Electrode
Material - Nickel
Type - V-Cut
Size - 2.5mm
Projection - Non-Projected


Ground Electrode
Material - Nickel
Type - Standard
Quantity - 1


Specifications
Resistor - Yes
Resistor Value - 5k Ohm
Heat Range - 7
Torque Specs - Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.


Part Information
Brand - NGK/NTK
Warranty - 60 Days
Longevity - 30k Miles
