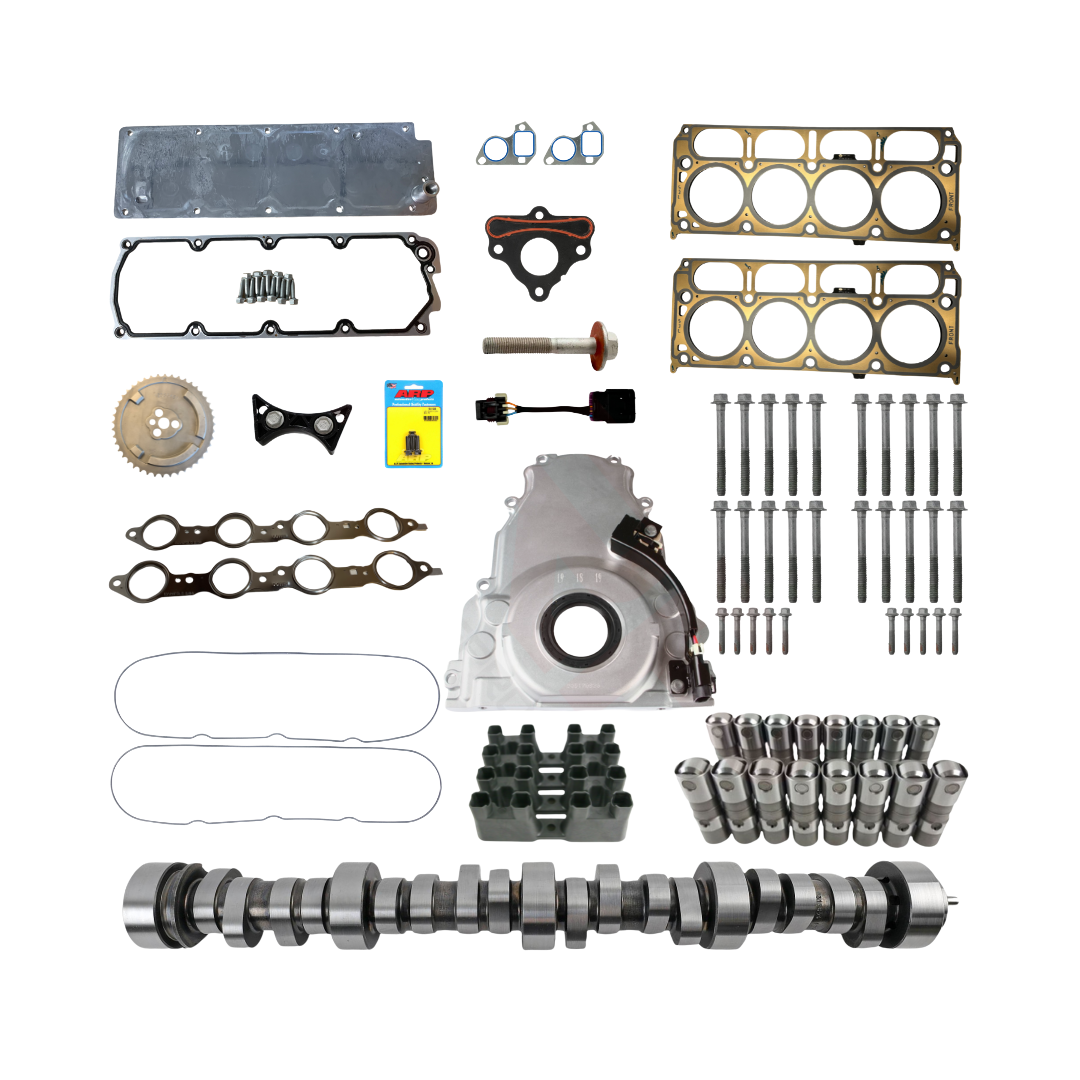

TRP 07-13 5.3L DOD/AFM/VVT Delete Kit w/ TRP NSR Camshaft

Tristar Racing Products DOD/VVT/Cam Kit is the perfect option for someone looking to add some pep to their old trucks step while replacing that collapsed lifter. This kit is designed for the 5.3L Truck/SUV engines from 2007-2013.

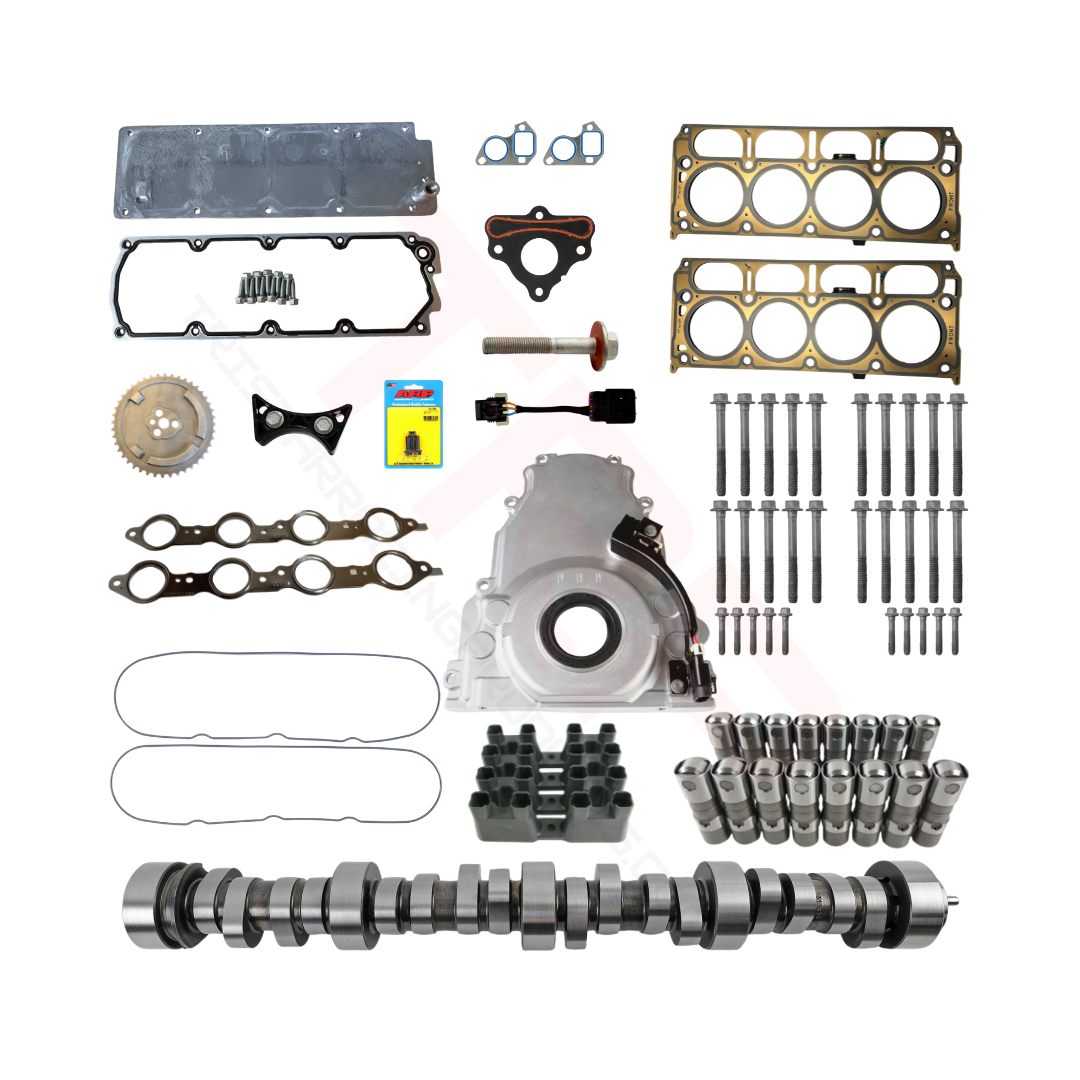

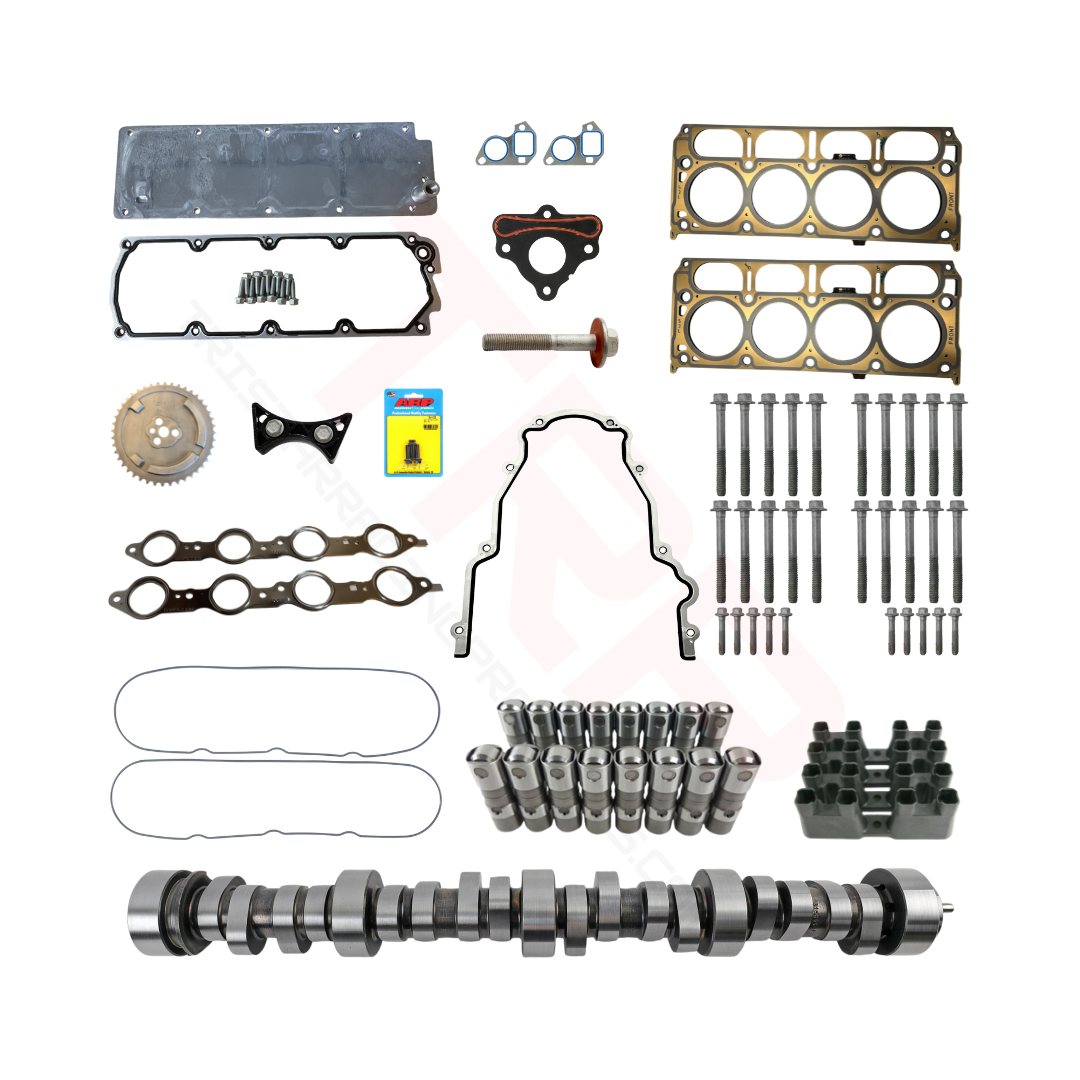

DOD/AFM Kit Includes:

1. Your Choice of TRP NSR Camshaft

2. Non-DOD Valley Cover w/ New Gaskets and Bolts

3. GM Lifter Trays x4 12595365

4. Your Choice of Lifters

5. TRP 5.3L MLS Head Gasket Pair TRP89226

6. TRP OEM Style Head Bolt Set TRP00568

7. GM Crank Bolt 12557840

8. TRP MLS Exhaust Manifold Gasket Pair TRP17944

9. TRP Valve Cover Gasket Pair TRP12045

10. TRP Timing Cover Gasket (Not included when you select yes on vvt option, gm cover comes with gasket) TRP33904
11. TRP Timing Chain Dampener TRP88670

12. ARP Cam Bolts 134-1003

13. TRP Water Pump Gasket Pair TRP30223

14. TRP 58X 4 Pole 3 Bolt Timing Gear TRP86481

15. TRP Camshaft Retainer Thrust Plate TRP89016

VVT Kit Includes: (if your engine comes with VVT, you must select Add VVT Kit. VVT will not work with any of these camshafts)

1. GM Timing Chain Cover w/ Cam Sensor 12633906

2. TRP VVT TO NON-VVT Adapter Harness

TRP Cam Specs: (For more cam information please see the camshaft listing under TRP Camshafts)

TRP Tow/Haul Camshaft - 200/204 .501"/.501" 112 LSA 108 ICL
Works w/ stock converter, valvetrain, gearing and exhaust.

TRP Stage 1 NSR Cam - 204/210 .501"/.501" 114 LSA 110 ICL
Works w/ stock converter, valvetrain, gearing and exhaust.

TRP Stage 2 NSR Cam - 210/216 .501"/.501" 112 LSA 109 ICL
Works w/ stock converter, valvetrain, gearing and exhaust.

TRP Chop Force One Jr NSR Cam - 210/218 .501"/.501" 109 LSA 106 ICL
Works w/ stock converter, valvetrain, gearing and exhaust.

Notes:

• Dyno or Street Tuning is REQUIRED

• If you need to customize this kit feel free to call or email us

• Delphi LS7 Lifters do not have any type of warranty.

• This is a 3 bolt camshaft, If your engine came with VVT from the factory, you will have to select Add VVT Kit. This camshaft will not work with VVT.
