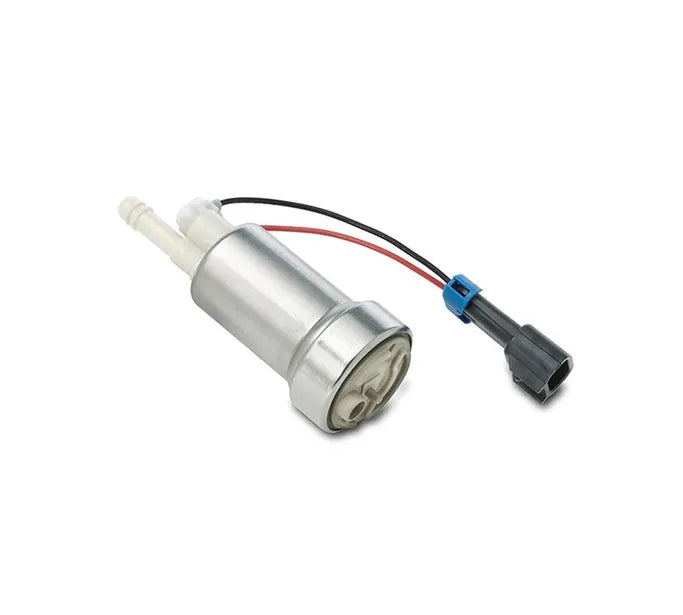

Walbro Hellcat 535LPH E85 Fuel Pump

Walbro Hellcat 535LPH E85 Fuel Pump

Regular price $179.99
Regular price Sale price $179.99
Sale Sold out
Shipping calculated at checkout.

SKU:F90000295

Walbro electric in-tank fuel pumps are available in a variety of flow ratings, including pumps that flow significantly more fuel at higher pressure. The outside dimensions, however, of many pumps are compact enough to fit existing hanger assemblies, without modification. All pumping components have been validated to OEM specifications for use in E85/flex fuel applications.

Most Walbro in-tank fuel pumps utilize a proven gerotor design. Some high-performance models, including those designed for engines with more than 750 hp, feature a dual-channel turbine design for maximum efficiency in high-pressure and high-temperature applications. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that's higher than conventional pumps. Some pumps require modifications to system wiring, fuel lines, and the fuel module, and should be professionally installed.

Installation kits including a fuel strainer, fuel hose, harness pigtail, clamps, and wire connectors are sold separately.

Flow Rate:
141 gph/535 lph
Fuel Pressure (psi):
40 psi
Fuel Pump Voltage:
12 V
Fuel Pressure Regulator Included:
No
Sending Unit Included:
No
Fuel Pump Inlet Size:
11.00mm
Inlet Quantity:
1
Fuel Pump Outlet Size:
11mm
Outlet Quantity:
1
Gasket Included:
No
Wiring Harness Included:
No
Mounting Bracket Included:
No
Mounting Hardware Included:
No
Pulley Included:
No
Remanufactured:
No
Quantity:
Sold individually.
Notes:
Pump does not have a built in check valve.
